海力士eMMC、UFS、DDR、LPDDR、HBM、eMCP、uMCP存储芯片对照表-免费获取EXCEL表格
来源:芯存社发布时间:2025-10-254872浏览
询问 AI

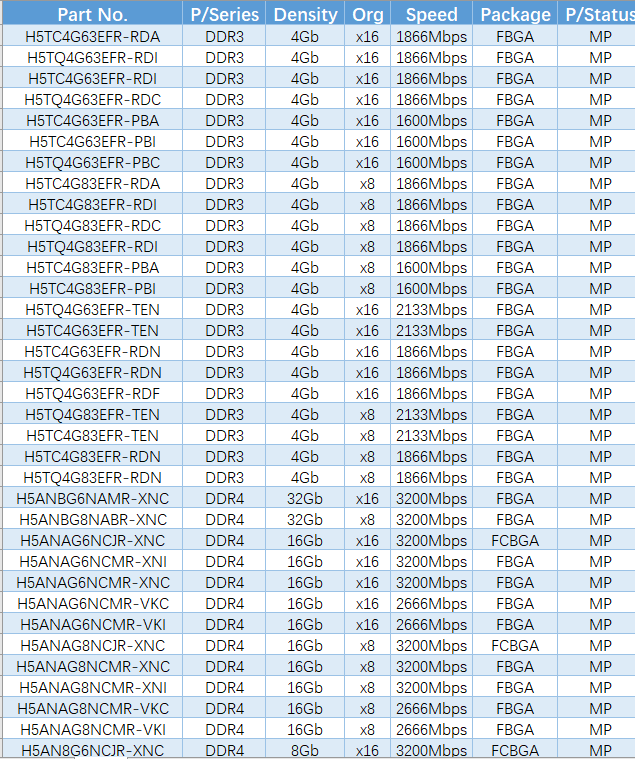

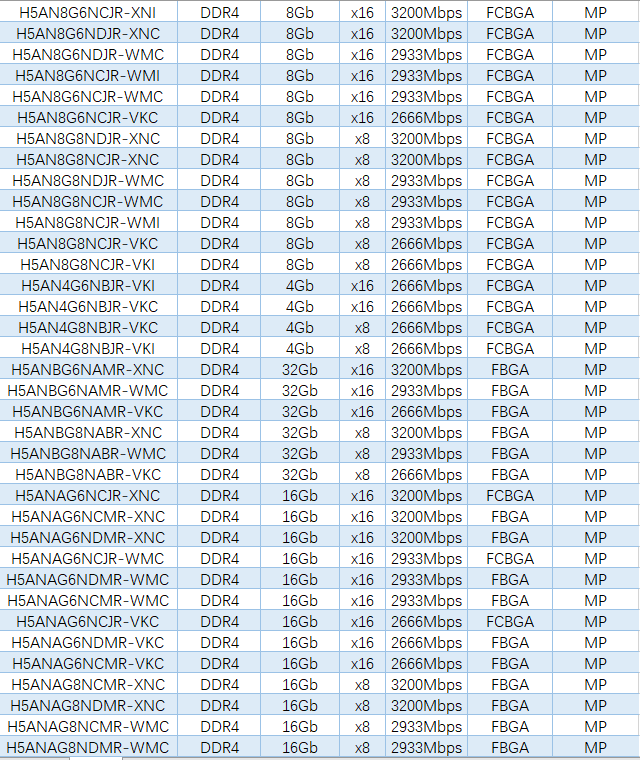

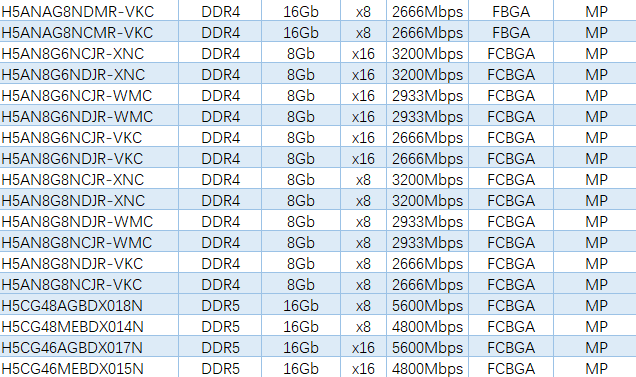

一、DDR

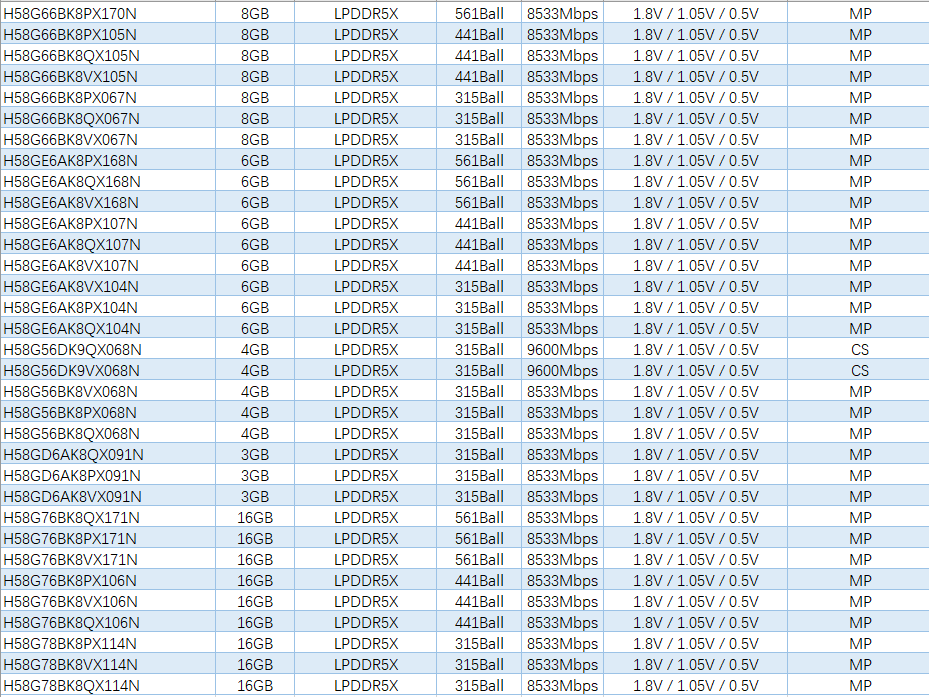

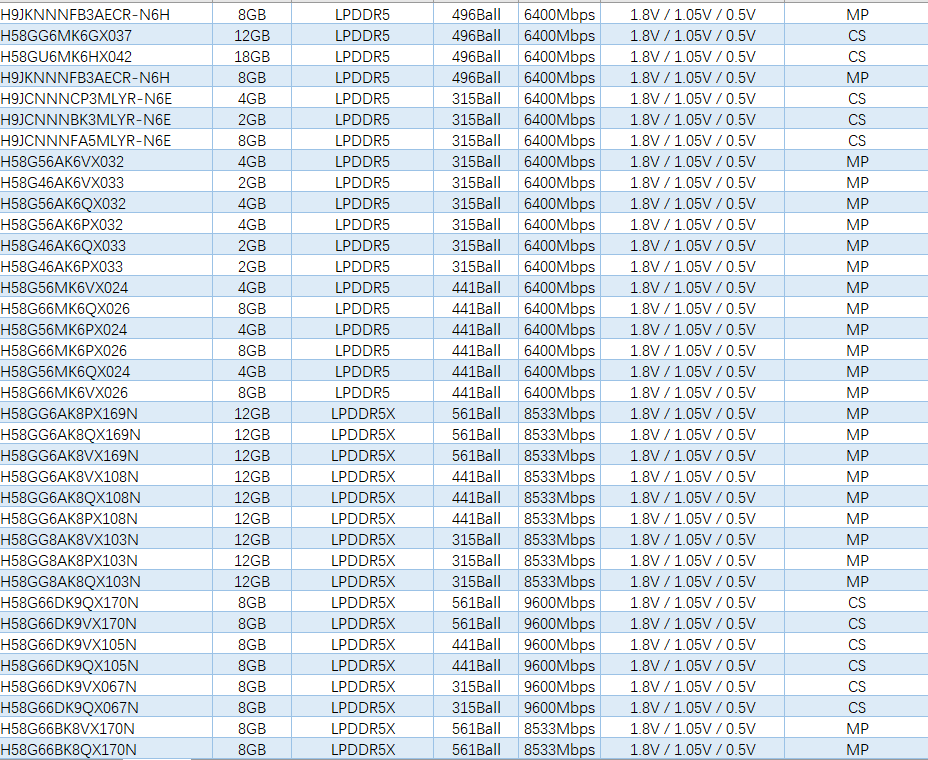

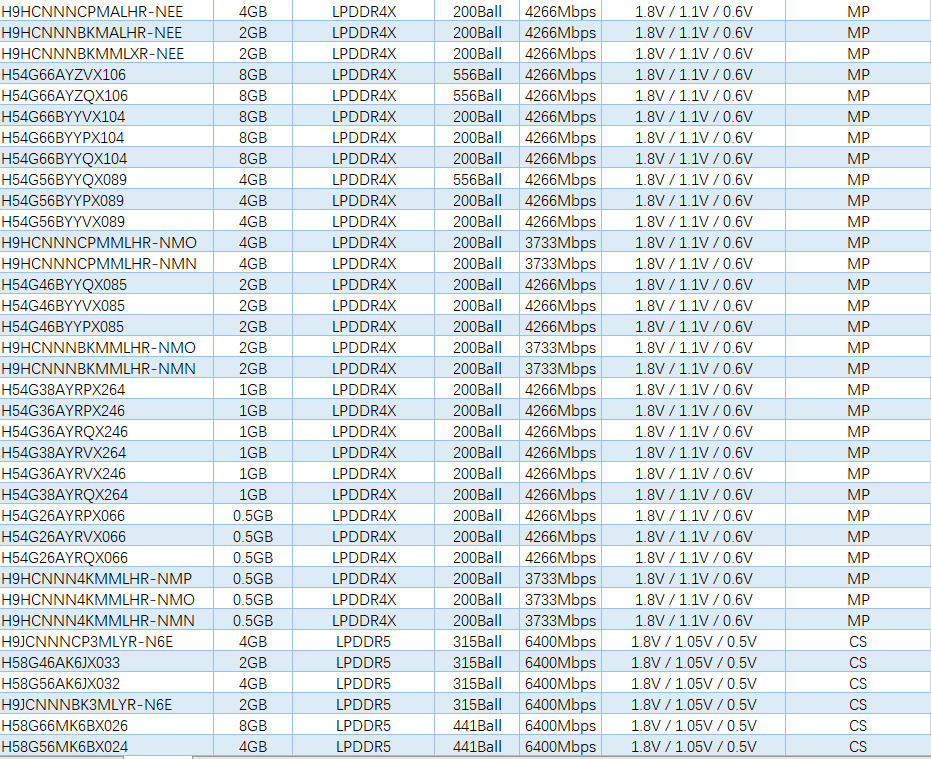

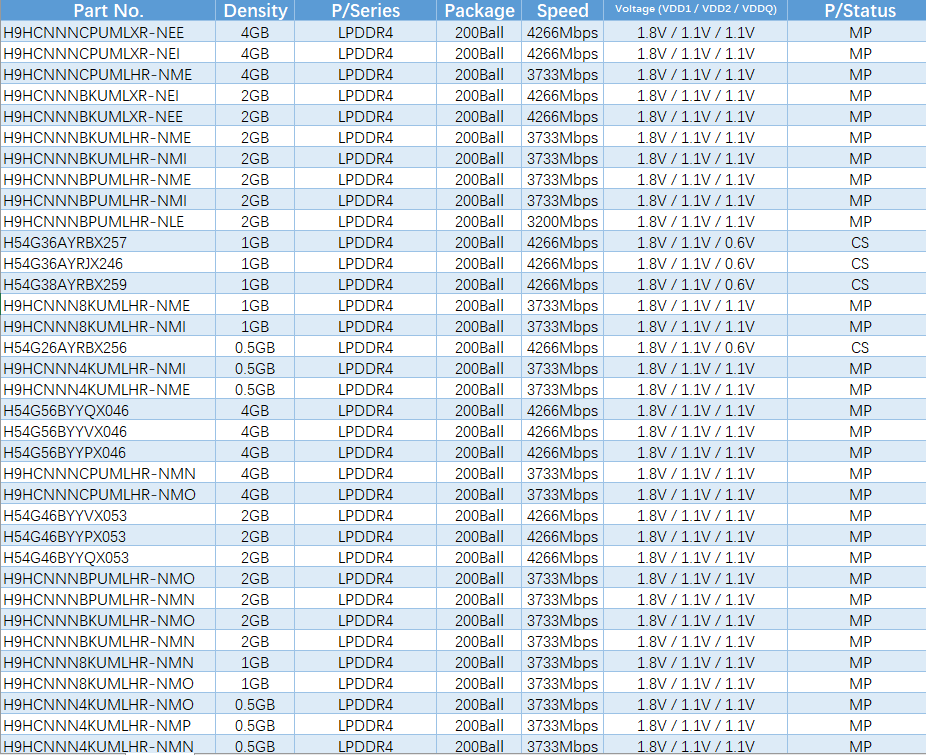

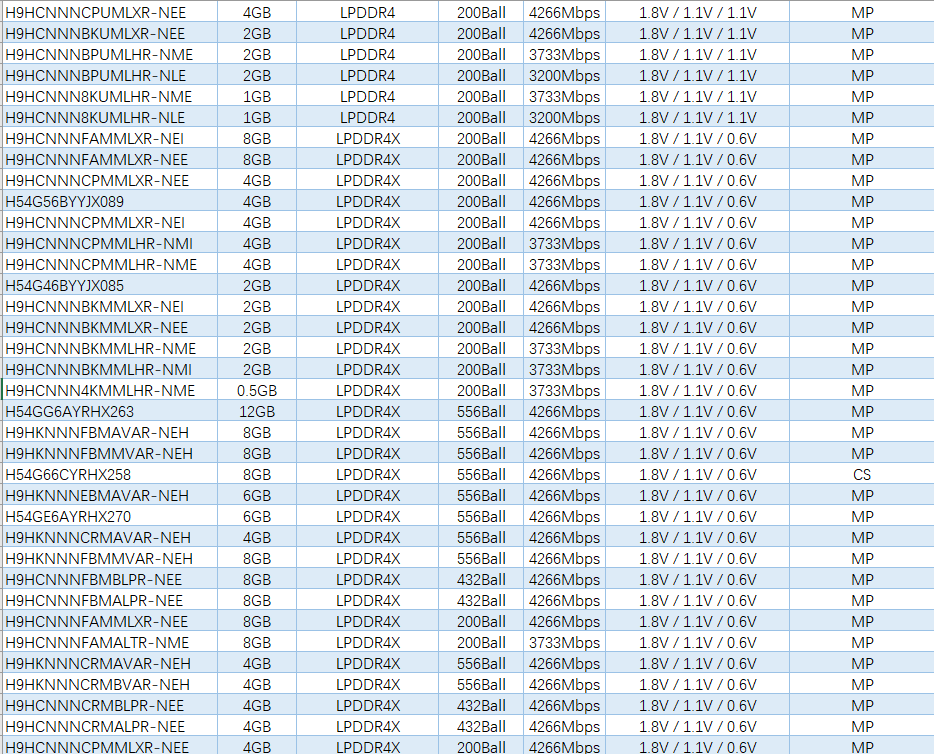

二、LPDDR

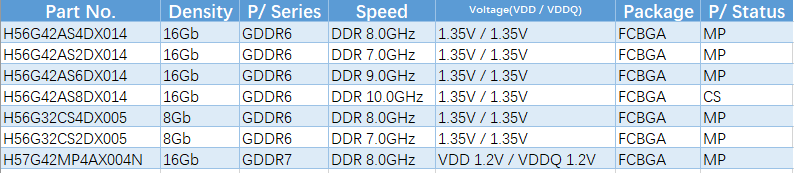

三、GDDR

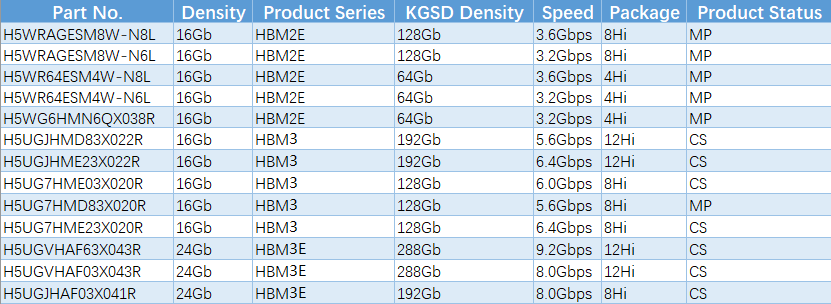

四、HBM
五、eMMC、UFS

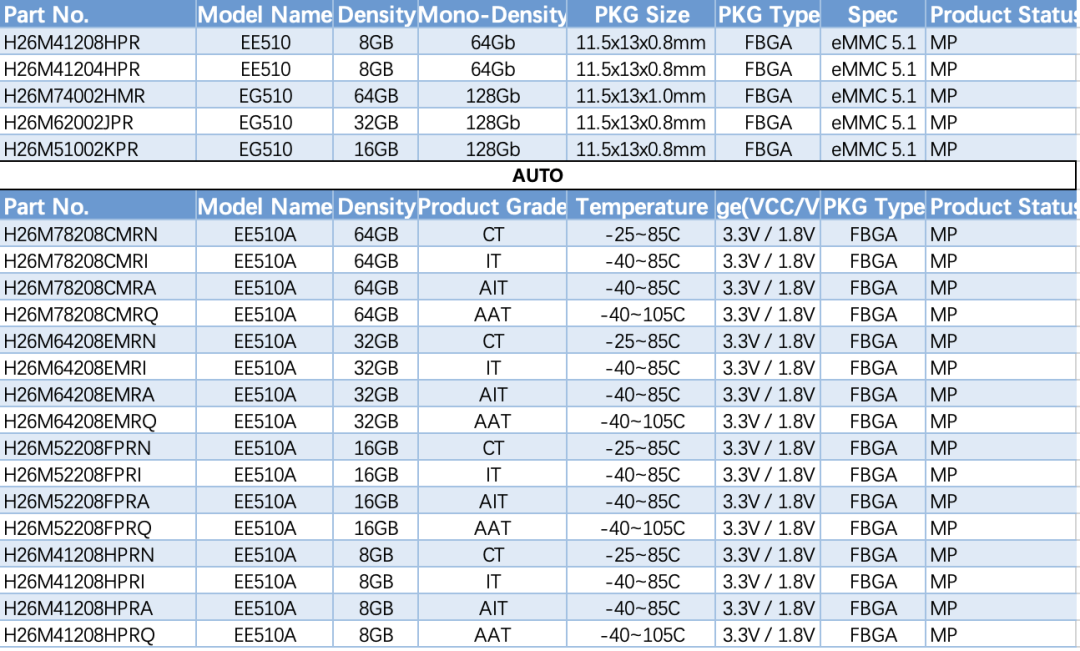

| Part No. | Model Name | Density | Mono-Density | PKG Size | PKG Type | Spec | Product Status |
| H26M41208HPR | EE510 | 8GB | 64Gb | 11.5x13x0.8mm | FBGA | eMMC 5.1 | MP |
| H26M41204HPR | EE510 | 8GB | 64Gb | 11.5x13x0.8mm | FBGA | eMMC 5.1 | MP |
| H26M74002HMR | EG510 | 64GB | 128Gb | 11.5x13x1.0mm | FBGA | eMMC 5.1 | MP |
| H26M62002JPR | EG510 | 32GB | 128Gb | 11.5x13x0.8mm | FBGA | eMMC 5.1 | MP |
| H26M51002KPR | EG510 | 16GB | 128Gb | 11.5x13x0.8mm | FBGA | eMMC 5.1 | MP |
| AUTO | |||||||
| Part No. | Model Name | Density | Product Grade | Temperature | Voltage(VCC/VCCQ) | PKG Type | Product Status |
| H26M78208CMRN | EE510A | 64GB | CT | -25~85C | 3.3V / 1.8V | FBGA | MP |
| H26M78208CMRI | EE510A | 64GB | IT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M78208CMRA | EE510A | 64GB | AIT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M78208CMRQ | EE510A | 64GB | AAT | -40~105C | 3.3V / 1.8V | FBGA | MP |
| H26M64208EMRN | EE510A | 32GB | CT | -25~85C | 3.3V / 1.8V | FBGA | MP |
| H26M64208EMRI | EE510A | 32GB | IT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M64208EMRA | EE510A | 32GB | AIT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M64208EMRQ | EE510A | 32GB | AAT | -40~105C | 3.3V / 1.8V | FBGA | MP |
| H26M52208FPRN | EE510A | 16GB | CT | -25~85C | 3.3V / 1.8V | FBGA | MP |
| H26M52208FPRI | EE510A | 16GB | IT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M52208FPRA | EE510A | 16GB | AIT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M52208FPRQ | EE510A | 16GB | AAT | -40~105C | 3.3V / 1.8V | FBGA | MP |
| H26M41208HPRN | EE510A | 8GB | CT | -25~85C | 3.3V / 1.8V | FBGA | MP |
| H26M41208HPRI | EE510A | 8GB | IT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M41208HPRA | EE510A | 8GB | AIT | -40~85C | 3.3V / 1.8V | FBGA | MP |
| H26M41208HPRQ | EE510A | 8GB | AAT | -40~105C | 3.3V / 1.8V | FBGA | MP |

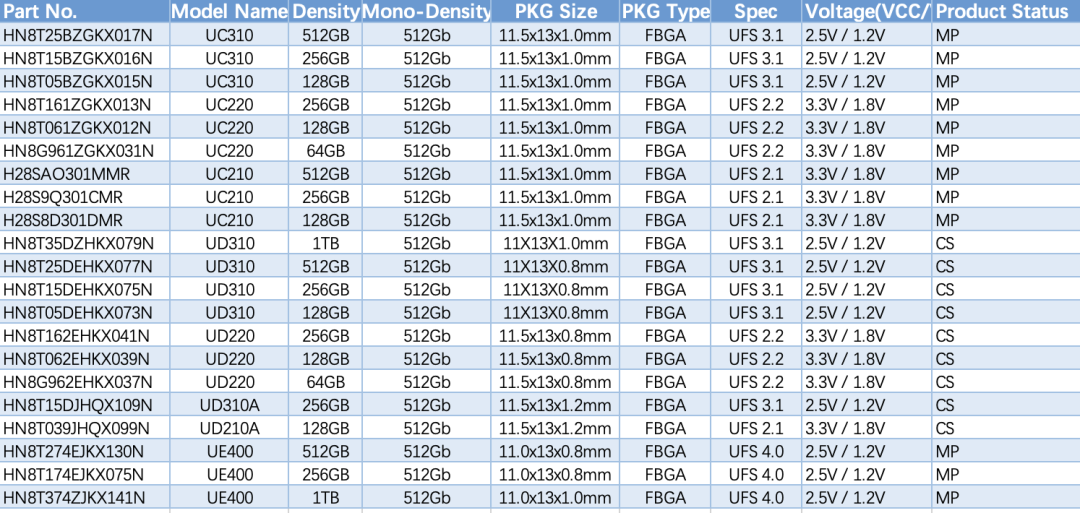

| Part No. | Model Name | Density | Mono-Density | PKG Size | PKG Type | Spec | Voltage(VCC/VCCQ) | Product Status |
| HN8T25BZGKX017N | UC310 | 512GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 3.1 | 2.5V / 1.2V | MP |
| HN8T15BZGKX016N | UC310 | 256GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 3.1 | 2.5V / 1.2V | MP |
| HN8T05BZGKX015N | UC310 | 128GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 3.1 | 2.5V / 1.2V | MP |
| HN8T161ZGKX013N | UC220 | 256GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 2.2 | 3.3V / 1.8V | MP |
| HN8T061ZGKX012N | UC220 | 128GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 2.2 | 3.3V / 1.8V | MP |
| HN8G961ZGKX031N | UC220 | 64GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 2.2 | 3.3V / 1.8V | MP |
| H28SAO301MMR | UC210 | 512GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 2.1 | 3.3V / 1.8V | MP |
| H28S9Q301CMR | UC210 | 256GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 2.1 | 3.3V / 1.8V | MP |
| H28S8D301DMR | UC210 | 128GB | 512Gb | 11.5x13x1.0mm | FBGA | UFS 2.1 | 3.3V / 1.8V | MP |
| HN8T35DZHKX079N | UD310 | 1TB | 512Gb | 11X13X1.0mm | FBGA | UFS 3.1 | 2.5V / 1.2V | CS |
| HN8T25DEHKX077N | UD310 | 512GB | 512Gb | 11X13X0.8mm | FBGA | UFS 3.1 | 2.5V / 1.2V | CS |
| HN8T15DEHKX075N | UD310 | 256GB | 512Gb | 11X13X0.8mm | FBGA | UFS 3.1 | 2.5V / 1.2V | CS |
| HN8T05DEHKX073N | UD310 | 128GB | 512Gb | 11X13X0.8mm | FBGA | UFS 3.1 | 2.5V / 1.2V | CS |
| HN8T162EHKX041N | UD220 | 256GB | 512Gb | 11.5x13x0.8mm | FBGA | UFS 2.2 | 3.3V / 1.8V | CS |
| HN8T062EHKX039N | UD220 | 128GB | 512Gb | 11.5x13x0.8mm | FBGA | UFS 2.2 | 3.3V / 1.8V | CS |
| HN8G962EHKX037N | UD220 | 64GB | 512Gb | 11.5x13x0.8mm | FBGA | UFS 2.2 | 3.3V / 1.8V | CS |
| HN8T15DJHQX109N | UD310A | 256GB | 512Gb | 11.5x13x1.2mm | FBGA | UFS 3.1 | 2.5V / 1.2V | CS |
| HN8T039JHQX099N | UD210A | 128GB | 512Gb | 11.5x13x1.2mm | FBGA | UFS 2.1 | 3.3V / 1.8V | CS |
| HN8T274EJKX130N | UE400 | 512GB | 512Gb | 11.0x13x0.8mm | FBGA | UFS 4.0 | 2.5V / 1.2V | MP |
| HN8T174EJKX075N | UE400 | 256GB | 512Gb | 11.0x13x0.8mm | FBGA | UFS 4.0 | 2.5V / 1.2V | MP |
| HN8T374ZJKX141N | UE400 | 1TB | 512Gb | 11.0x13x1.0mm | FBGA | UFS 4.0 | 2.5V / 1.2V | MP |

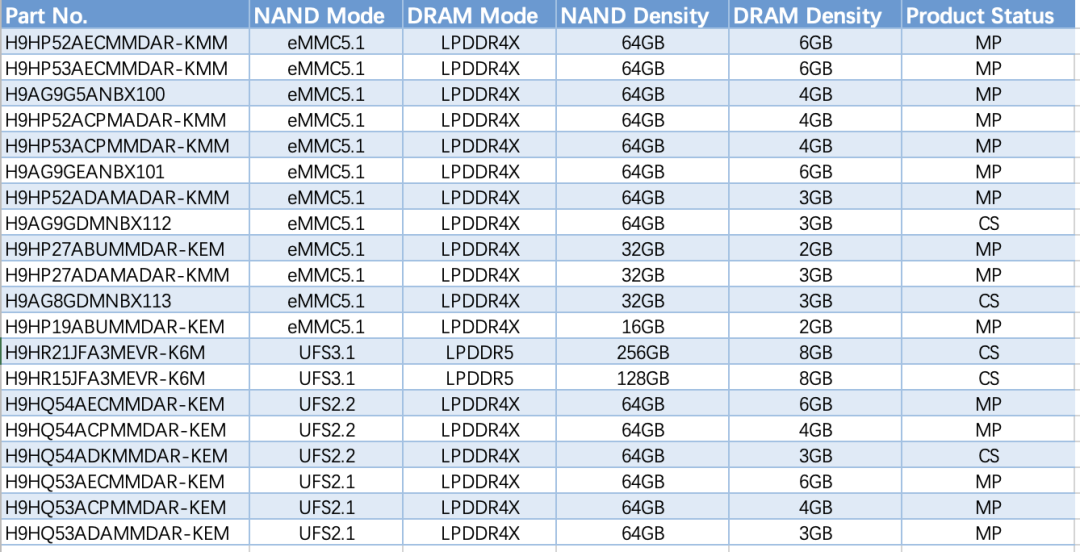

六、eMCP、uMCP
| Part No. | NAND Mode | DRAM Mode | NAND Density | DRAM Density | Product Status |
| H9HP52AECMMDAR-KMM | eMMC5.1 | LPDDR4X | 64GB | 6GB | MP |
| H9HP53AECMMDAR-KMM | eMMC5.1 | LPDDR4X | 64GB | 6GB | MP |
| H9AG9G5ANBX100 | eMMC5.1 | LPDDR4X | 64GB | 4GB | MP |
| H9HP52ACPMADAR-KMM | eMMC5.1 | LPDDR4X | 64GB | 4GB | MP |
| H9HP53ACPMMDAR-KMM | eMMC5.1 | LPDDR4X | 64GB | 4GB | MP |
| H9AG9GEANBX101 | eMMC5.1 | LPDDR4X | 64GB | 6GB | MP |
| H9HP52ADAMADAR-KMM | eMMC5.1 | LPDDR4X | 64GB | 3GB | MP |
| H9AG9GDMNBX112 | eMMC5.1 | LPDDR4X | 64GB | 3GB | CS |
| H9HP27ABUMMDAR-KEM | eMMC5.1 | LPDDR4X | 32GB | 2GB | MP |
| H9HP27ADAMADAR-KMM | eMMC5.1 | LPDDR4X | 32GB | 3GB | MP |
| H9AG8GDMNBX113 | eMMC5.1 | LPDDR4X | 32GB | 3GB | CS |
| H9HP19ABUMMDAR-KEM | eMMC5.1 | LPDDR4X | 16GB | 2GB | MP |
| H9HR21JFA3MEVR-K6M | UFS3.1 | LPDDR5 | 256GB | 8GB | CS |
| H9HR15JFA3MEVR-K6M | UFS3.1 | LPDDR5 | 128GB | 8GB | CS |
| H9HQ54AECMMDAR-KEM | UFS2.2 | LPDDR4X | 64GB | 6GB | MP |
| H9HQ54ACPMMDAR-KEM | UFS2.2 | LPDDR4X | 64GB | 4GB | MP |
| H9HQ54ADKMMDAR-KEM | UFS2.2 | LPDDR4X | 64GB | 3GB | CS |
| H9HQ53AECMMDAR-KEM | UFS2.1 | LPDDR4X | 64GB | 6GB | MP |
| H9HQ53ACPMMDAR-KEM | UFS2.1 | LPDDR4X | 64GB | 4GB | MP |
| H9HQ53ADAMMDAR-KEM | UFS2.1 | LPDDR4X | 64GB | 3GB | MP |
