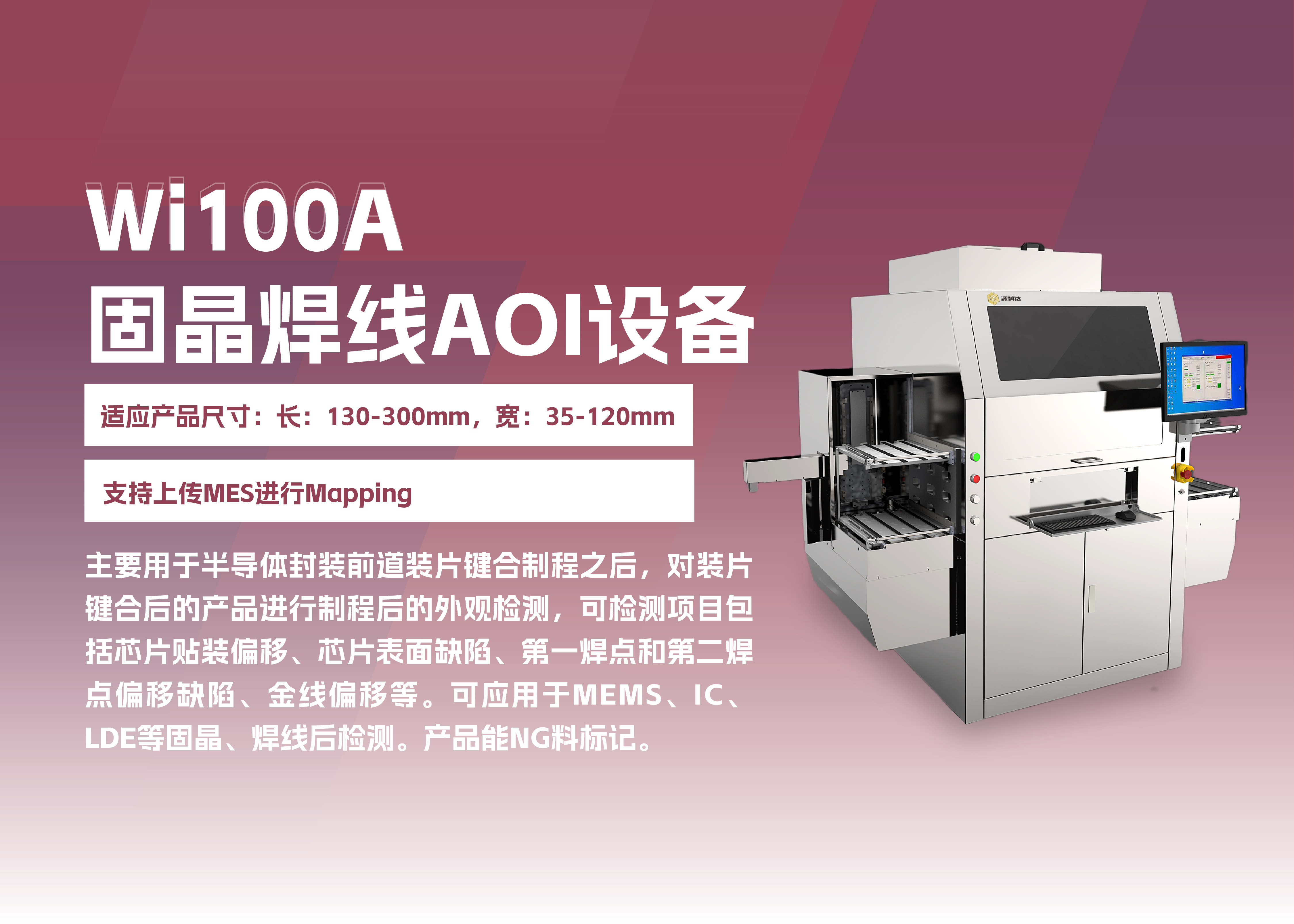

精品推荐 | Wi100A固晶焊线AOI设备

技术亮点

Technology highlights

多级定位，精确控制

由于制程中可能出现的误差、基板变形等因素导致的元件偏移，准确对金球和金线进行定位。

Due to possible errors in the manufacturing process, substrate deformation, and other factors that may cause component displacement, accurate positioning of gold balls and wires is required.

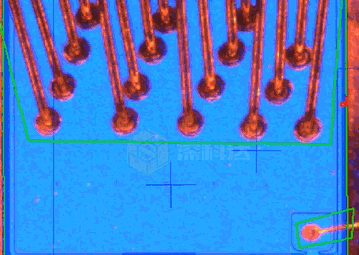

金球金线模板，快速制作

少数模板和区域的划定后，能自动生成金球、金线的检测窗体区域。

After the delineation of a few templates and areas, it can automatically generate detection form areas for golden balls and lines.

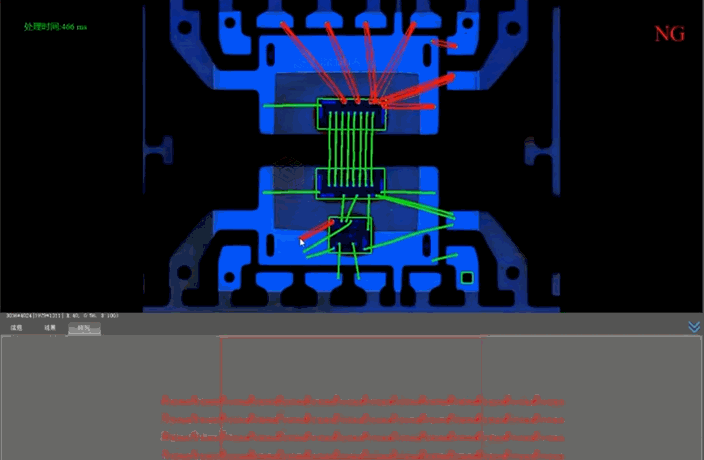

AI辅定位，球线分割更高级

AI深度学习，可对低对比度的球线分割定位。

AI deep learning can segment and locate low contrast spherical lines.

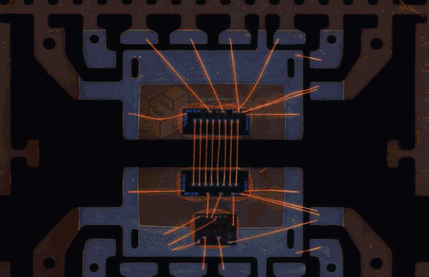

独特的技术与算法，轻松掌控每一处细节

独特成像技术及图像处理算法，自动排除背景图像干扰，准确标记检测对象。

Unique imaging technology and image processing algorithms automatically eliminate background image interference and accurately label the detected object.

特点特征

Characteristics

检测专属，D/B 后及W /B后

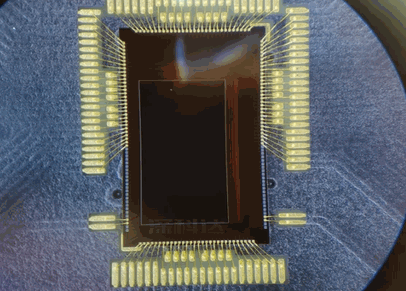

适用于半导体封装D/B 后及W /B后两个站点的检测

Suitable for testing at two sites after semiconductor packaging D/B and W/B

精益求精，全方面把控

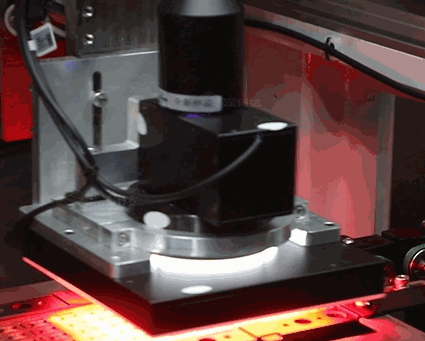

高精度，高清工业相机+低畸变远心镜头。

High precision, high-definition industrial camera with low distortion telephoto lens.

智能探索，细致入微

人工智能识别， 深度学习技术，面向复杂背景下目标特征的像素级检测。

Artificial intelligence recognition, deep learning technology, pixel level detection for target features in complex backgrounds.

轻松掌控，高效生产

操作简单， 编辑软件简单易懂，可迅速掌握操作方法，人机交换界面，实时监控生产，了解生产数据。

Easy to operate, easy to understand editing software, quick to master operation methods, human-machine exchange interface, real-time monitoring of production, and understanding of production data.

兼容并蓄，一应俱全

多产品兼容，可兼容金线、铝线、银线、铜带等。

Multi product compatibility, compatible with gold wire, aluminum wire, silver wire, copper strip, etc.

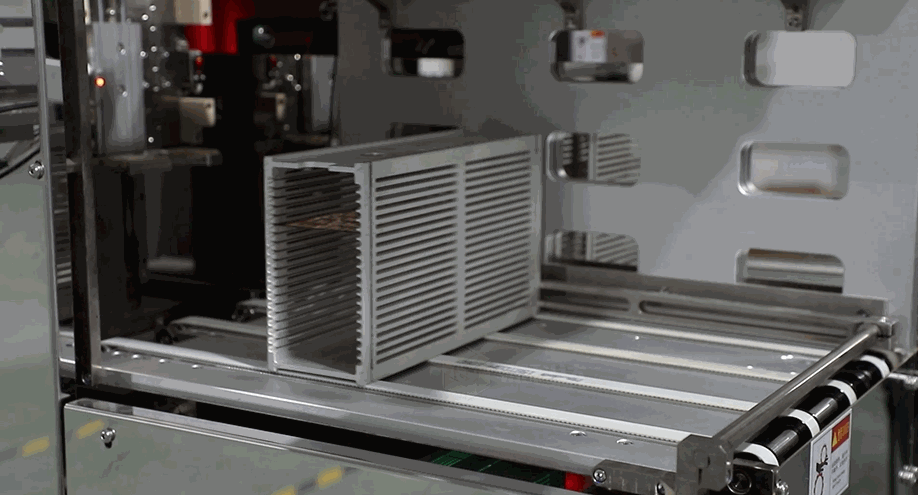

一键启动，全自动上下料

全自动大容量上下料机，降低了人工操作的复杂程度，提高了生产效率。

The fully automatic large capacity loading and unloading machine reduces the complexity of manual operations and improves production efficiency.

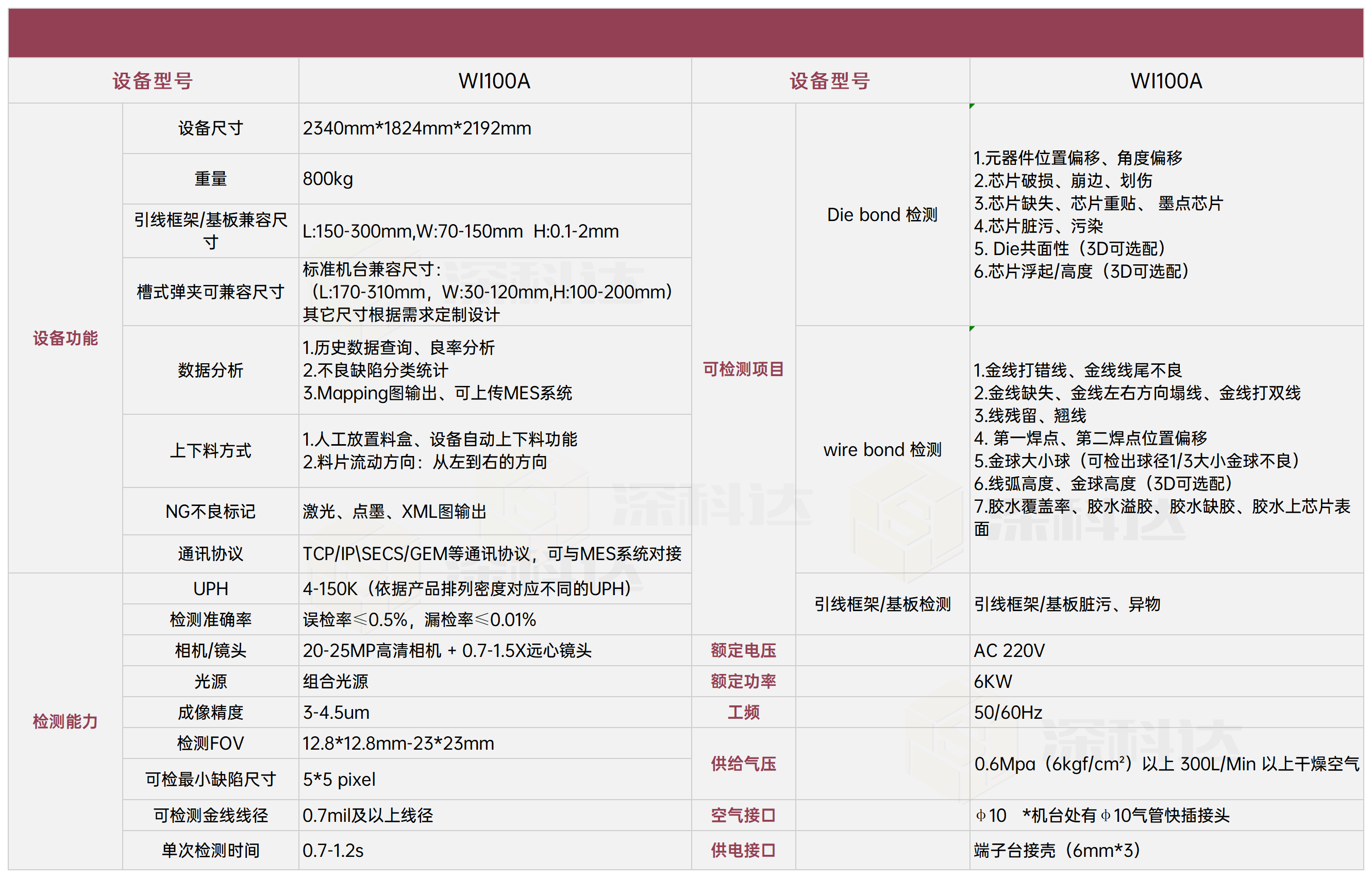

规格参数

Specification parameters
