Query Server 和Yield Server 在IC上的使用

最近一直在研究两件事，目前都有了一些成果。

第一件事：不同版图EDA工具间数据的转换问题，除了基于OA的database的pcell 还是存在一些各家工具自己封闭的内容，这部分内容如何能够不同tool上做对应。

因为目前主流foundry都会提高两套PDK，所以这部分foundry提供ipdk的一般问题都不大。这里不展开说。

第二件事：如果使用验证工具来完善版图上的设计流程。

这里举个例子：如果版图没有完全使用SDL 这样的设计Flow来做，后期导致net 和device 没法和电路上一一对应。这个问题有没有办法解决。Virtuoso 配合pvs 可以重塑SDL对应关系 Custom compiler 配合ICV同样可以实现SDL的关系。CC中对于的command是：

lx：：establishCorrespondenceFromLVS -path <lvs run path> -layout <dmcellview> -schematic <dmschematic>

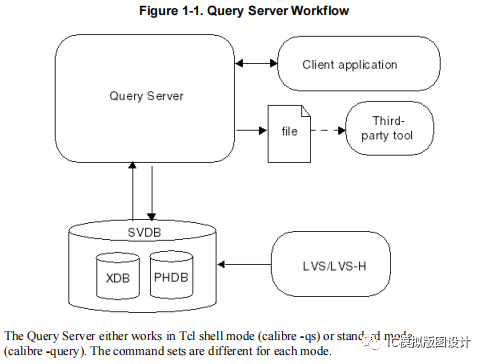

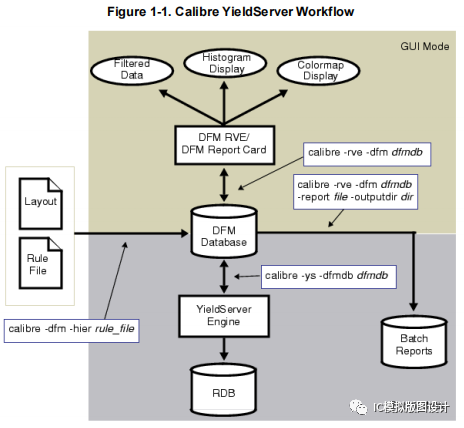

如果使用第三方工具做的PV 是否也能够实现这样的功能。看过我文章的应该看到过前面提到的calibre的perc，perc确实可以实现从lvs pass的svdb 或dfmdb结果中提取出device信息，net信息。但是我感觉还不够方便。今天介绍的calibre的 queryServer 和YieldServer 能够更快的提取出这些信息。DRC LVS可能大家比较熟悉对query和yield 比较陌生，这两个server在某些场景下也是非常好用，也很方便。

对应的命令是calibre -qs 和calibre -ys

从calibre svdb结果到Custom compiler重建SDL也是基于query和Yield 来实现的。

下面列举个case演示qs 和ys 的部分功能，

这个case是使用YieldServer 的脚本来实现Hierarchy的报告

set cells [dfm::get_cells];while {$cells != ""} { set cellName [dfm::get_data $cells -cell_name]; lappend cellList $cellName; dfm::inc cells;}# get the total cell countset cellCount [llength $cellList];# test for hierarchy and exit if there is noneif { $cellCount < "2" } { puts "\n NOTE: Layout has no hierarchy. Nothing to do. \n"; exit 0;} # put any debug diagnostics hereif { [info exists DEBUG] == 1 } {  puts "\n---$cellCount layout cells: \n\n[regsub -all { } \[lsort $cellList] "\n"] \n";};proc hier_count { cells level } { # if this proc is called, there is an additional level of hierarchy incr level;  set currentCells $cells; set newCells "";# track cells at a given level foreach child $currentCells {  append newCells "[dfm::list_children $child] "; }  if { [lindex $newCells 0] != "" } { hier_count $newCells $level; } else { return $level; }} puts "\n\n CELL HIERARCHY LEVELS AND INSTANTIATIONS"puts "---------------------------------------------------------------\n";# iterate over all cells.set hierList "";foreach cell $cellList { set plCount [dfm::get_placement_count $cell] set childCells [dfm::list_children $cell]# if there are child cells, process to find the number of hierarchy # levels, otherwise add to the list with hierarchy as <0> if { [llength $childCells] > 0 } { lappend hierList [list $cell "levels: [hier_count "$childCells" 0]"\"instantiations: $plCount"]; } else { lappend hierList [list $cell "levels: 0" "instantiations: $plCount"]; }}# output the cell list in ascii order# create a 3-column matrix for printingstruct::matrix m0;m0 add columns 3;set sortList [lsort $hierList];set sortListLength [llength $sortList];for {set i 0} {$i < $sortListLength} {incr i} {# if struct::matrix is not available, use next line for output instead# puts "---[lindex $sortList $i]"; m0 add row "---[lindex $sortList $i]";}# output the tablem0 format 2chan;puts "\n";proc write_tree { level {cell ""} {indent ""} } {  if { $cell == 0 } { puts "\n ERROR: Cannot determine top cell."; exit 1; }# get placements in a cell set pl [dfm::get_placements $cell]# write the cell placement in the tree puts "$indent <$level> $cell"; # adjust the indent level of the tree append indent " ";# increment the level incr level; # recursively call this proc to descend all branches of the hierarchy while {$pl != ""} { set plName [dfm::get_data $pl -cell_name]; write_tree $level $plName $indent; dfm::inc pl; } } # OUTPUT FROM THIS PART IS VERBOSE! UNCOMMENT TO CALL IT.# puts "\n\n HIERARCHY TREE"# puts "-------------------------------------------------------------\n";# call the write_tree proc. hierarchy level is 0 beginning with top cell# write_tree 0 [dfm::get_top_cell]; # UNCOMMENT TO WRITE TREE;puts "\n\n---Done.\n"exit -force}

效果：

CELL HIERARCHY LEVELS AND INSTANTIATIONS

---------------------------------------------------------------

Loading hierarchy and connectivity

---CellA levels: 1 instantiations: 2

---CellB levels: 1 instantiations: 1

---TOPCELL levels: 2 instantiations: 0

---inv levels: 0 instantiations: 1

---nand levels: 0 instantiations: 2

HIERARCHY TREE

---------------------------------------------------------------

<0> TOPCELL

<1> CellA

<2> nand

<1> CellA

<2> nand

<1> CellB

<2> inv
