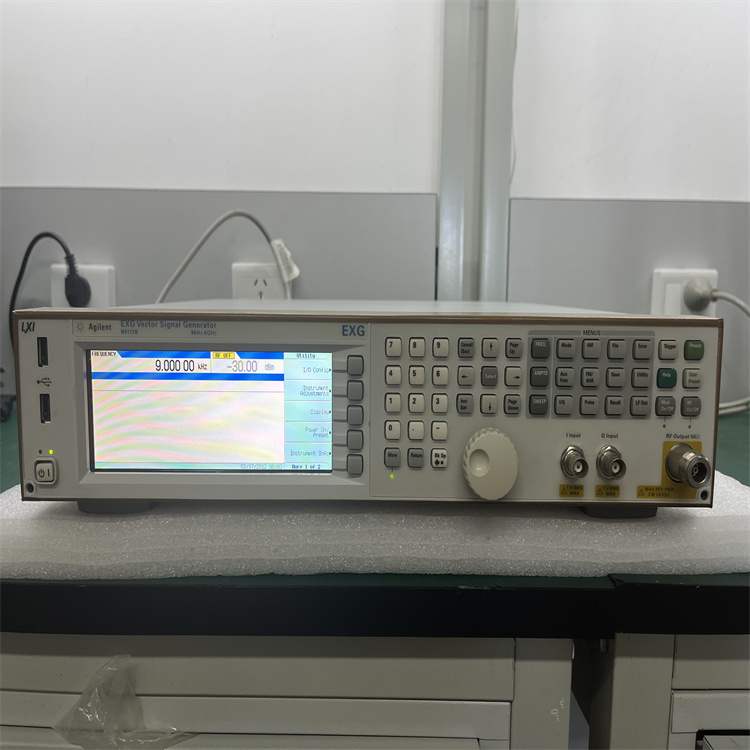

出售+高价回收安捷伦N5172B信号发生器9 kHz 至 3 或 6 GHz

附加的功能：

9 kHz 至 3 或 6 GHz

+21 dBm 指定功率至 3 GHz，带电子衰减器

< 900-µs 同时切换频率、功率和波形类型

≤ -73 dBc ACP W-CDMA 64 DPCH 和 <0.4% EVM 80 MHz 802.11 AC

AM、FM、ØM 和窄脉冲

10 MHz 多功能发生器和低频输出

数字步进和列表扫描模式

l/Q 调制：ASK、FSK、MSK、PSK、QAM、自定义 I/Q

120 MHz 内部基带发生器（±0.2 dB 平坦度）：任意波形和实时 I/Q

512 Msample 播放内存和 30 GB 内部或 8 GB 外部可移动内存

任意和实时信号：LTE、HSPA+、WLAN、GNSS、DVB 等 – 信号创建

Multi-channel baseband generation with Agilent HP N5102A digital I/O, MIMO, and RF fading with PXB

1000BaseT LAN, LXI, USB 2.0, and GPIB

SCPI, IVI-COM, MATLAB drivers

Backward compatible with ESG, MXG, PSG and 8648x signal generators

Agilent HP USB power sensor compatible with embedded display and SCPI control

Maximize yield with outstanding hardware performance

Confidently test components with industry-leading ACPR, EVM, and output power

Maximize throughput with fast switching speed

Shrink your test stand with two rack-unit height

Test a broad range of signals with the most sophisticated applications

Support multiple technologies for cellular, wireless connectivity, video, and tracking/navigation applications with Signal Studio software

Simulate real-world signals with real-time capabilities for LTE, GNSS, DVB, and more

基于第一代 MXG 跟踪记录，通过较高的平均故障间隔时间 (MTBF) 增加正常运行时间

通过自我维护策略和低成本维修最大限度地减少停机时间和费用
